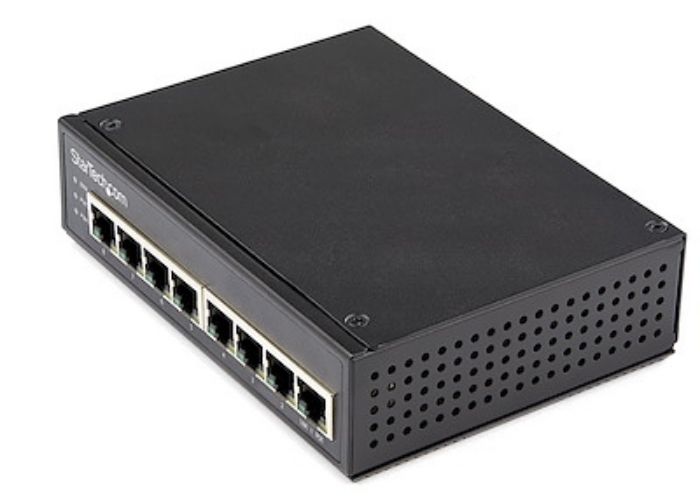

This 8-port Gigabit PoE industrial switch includes 30W of power and is designed for installation in extreme environments, as well as being compatible with a total of 200W of nominal power (outputs). Includes hardware for wall mounting or DIN rail mounting.
For demanding environments where fiber optic connections are not required
Using Cat 5e (or better) Ethernet cabling, this Ethernet switch provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3 Powered Devices (PD). at (PoE + / Type 2), such as:
Cameras
Sensors
Wi-Fi access points
High total power balance, with a high number of PoE ports, with a maximum of 30W per port, up to a maximum of 200W. Power provided in order of device connection; Maximum 6 802.3at devices (30W, 180W total), at any one time.
Truly industrial quality for devices that will be exposed to extreme conditions
Industrial Features Included:
Operating temperature range: -40 ° C to 75 ° C
IP-30 category box
Has undergone standard vibration, shock and free fall tests
This Ethernet switch supports additional features, such as redundant power inputs, 2kV lightning protection on RJ45 ports, MTBF of 500,000+ hours (Telcordia / Bellcore) at 50 ° C, for long-term reliability.
