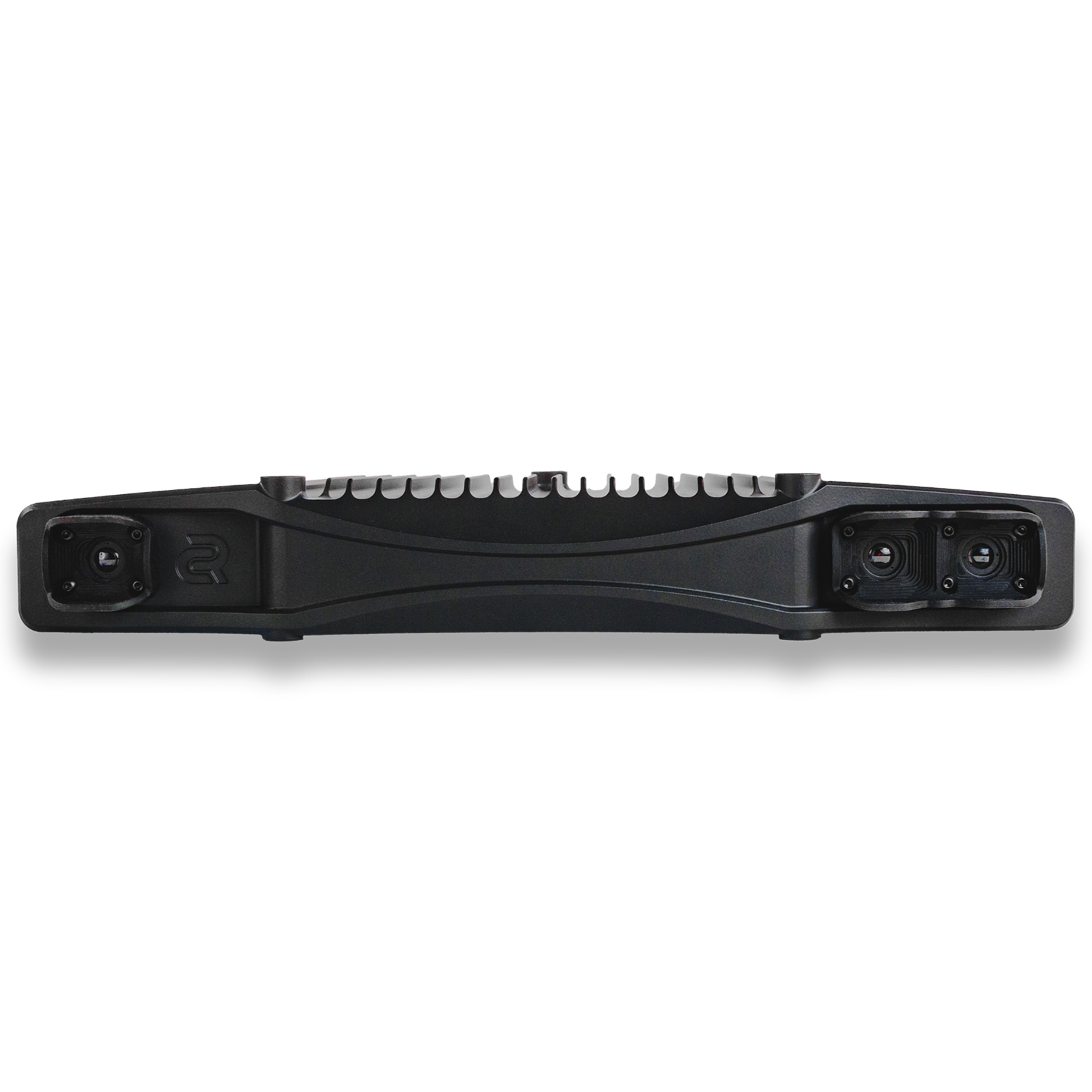

MultiSense® S30 Stereo Camera for Autonomy & Robotics
Introduction
The MultiSense® S30 is a high-performance rugged stereo camera designed for autonomous vehicles, robotics, defense systems, industrial automation, and advanced machine vision applications. Featuring an extended 30cm stereo baseline, extreme-distance depth sensing, real-time 3D perception, and powerful onboard processing, the S30 delivers exceptional accuracy and long-range environmental awareness in the most demanding operating conditions.
Built for harsh outdoor environments, the MultiSense S30 combines high-resolution imaging, dense point cloud generation, and onboard computational capabilities within a durable IP68-rated enclosure. Designed to operate without the need for a supplemental compute box, the S30 simplifies deployment while providing reliable perception data for mission-critical autonomous systems.
Key Features
• Ruggedized stereo camera for autonomy and robotics
• 30cm stereo baseline for superior long-range depth accuracy
• Extreme-distance depth sensing capability
• Real-time 3D sensing and environmental perception
• Integrated onboard processing and stereo computation
• High-precision point cloud generation
• Outdoor-ready IP68-rated enclosure
• Ground plane modeling without external processing hardware
• Long-range object detection up to 1440 meters
• Integrated IMU for navigation and motion tracking
• AI-ready onboard processing architecture
• Designed for harsh industrial and outdoor environments
• Built in the USA
Benefits
• Enables accurate long-range autonomous navigation
• Delivers high-fidelity depth perception in complex environments
• Supports advanced robotics and autonomous vehicle applications
• Reduces system complexity through onboard processing
• Generates dense and highly accurate 3D point clouds
• Provides reliable performance in extreme weather conditions
• Enhances situational awareness and obstacle detection
• Minimizes external hardware requirements
• Improves deployment efficiency and operational reliability
Performance Advantages
The MultiSense S30 is engineered for applications where long-range perception and reliability are critical. Its 30cm stereo baseline significantly improves depth accuracy at extended distances, making it ideal for autonomous vehicles, unmanned systems, and industrial robotics operating in large outdoor environments.
Advanced onboard stereo processing allows the camera to generate real-time depth maps, perform environmental modeling, and create highly detailed point clouds without relying on external computing resources. This enables faster decision-making and reduced system latency for autonomous operations.
Applications
• Autonomous vehicles
• Mobile robotics
• Defense and military systems
• Agricultural automation
• Industrial automation
• Mining and heavy equipment operations
• Smart infrastructure monitoring
• Marine and offshore robotics
• Security and surveillance systems
• Research and development projects
• Unmanned ground vehicles (UGVs)
• Advanced perception platforms
Technical Specifications
• CPU: 1.2GHz Quad-Core ARM Processor
• GPU: 500MHz 28nm Dual-Core Processor
• Memory: 4GB DDR4 RAM
• Mapping Sensor: BMI160 IMU
• Programmable Logic: 150,000 Logic Cells
• Baseline: 30cm
• Resolution (Monochrome): 1920 × 1280
• Resolution (RGB): 1920 × 1188
• Frame Rate: Up to 30 FPS
• Monochrome Shutter Type: Global Shutter
• RGB Shutter Type: Rolling Shutter
• Aperture: F/2.6
• Bit Depth: 8-bit
• Operating Temperature: -40°C to 80°C
• IP Rating: IP68
• Humidity Rating: Up to 93%
• Shock Resistance: 100G, 2ms
• Vibration Rating: 6.6 GRMS
• Regulatory Compliance: RoHS
• Weight: 2.6kg
• Dimensions: 36.4cm × 14.1cm × 5.6cm
• Maximum Detection Range: Up to 1440m
Why Choose MultiSense S30?
The MultiSense S30 is purpose-built for organizations requiring exceptional long-range depth perception, rugged durability, and advanced onboard processing. Its extended 30cm baseline enables highly accurate depth measurements over greater distances, while its IP68-rated design ensures dependable operation in harsh outdoor environments.
With integrated processing, AI-ready architecture, and high-precision point cloud generation, the S30 provides a complete perception solution for next-generation autonomous systems and intelligent robotics platforms.
Conclusion
The MultiSense® S30 Stereo Camera combines extreme-distance depth sensing, rugged environmental protection, and advanced onboard processing into a powerful solution for autonomy and robotics. Designed for demanding real-world applications, the S30 delivers the accuracy, reliability, and performance required to support modern autonomous operations across industrial, defense, agricultural, and robotic environments.
