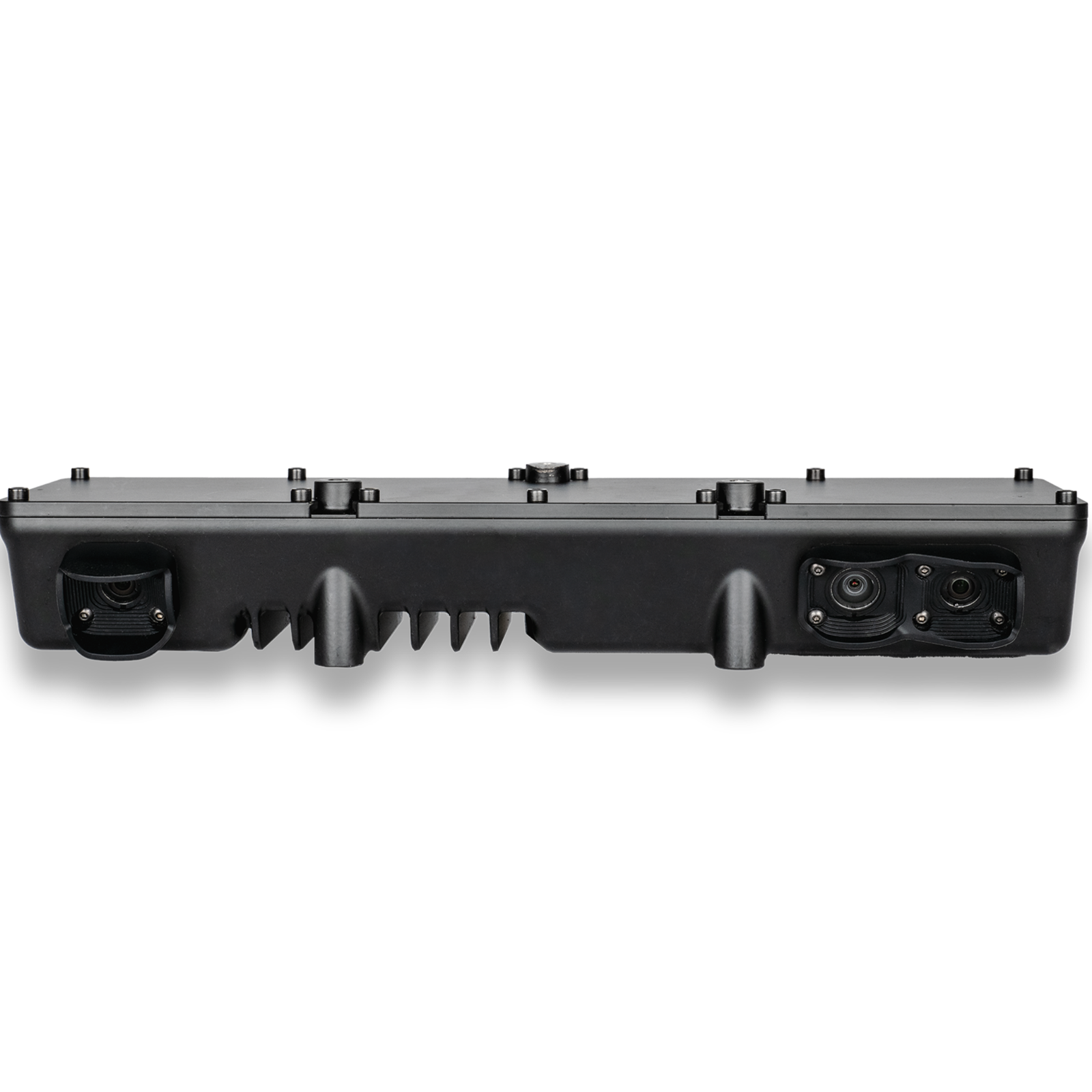

MultiSense® S27 Stereo Camera for Autonomy & Robotics
Introduction
The MultiSense® S27 is a ruggedized outdoor stereo camera engineered for autonomous vehicles, robotics, industrial automation, and advanced perception systems. Featuring a 27cm baseline, wide-angle imaging, real-time 3D sensing, and powerful onboard processing, the S27 delivers exceptional depth perception and environmental awareness in demanding outdoor environments.
Designed to operate in harsh conditions, the MultiSense S27 combines high-resolution imaging, long-range depth detection, and integrated processing capabilities in a durable IP67-rated enclosure. Its onboard computing platform eliminates the need for supplemental processing hardware, simplifying deployment while improving system performance and reliability.
Key Features
• Ruggedized stereo camera for autonomy and robotics
• 27cm stereo baseline for enhanced depth accuracy
• Wide-angle field of view for increased scene coverage
• Real-time 3D sensing and depth processing
• Integrated onboard processing capabilities
• High-precision point cloud generation
• Outdoor-ready IP67-rated enclosure
• Ground plane modeling without external compute systems
• Long-range depth perception up to 1296 meters
• Built-in IMU for motion and navigation data
• High-performance ARM CPU and GPU architecture
• Designed for harsh industrial and outdoor environments
• Built in the USA
Benefits
• Improves autonomous navigation and obstacle detection
• Delivers highly accurate depth data for robotics applications
• Reduces system complexity through onboard processing
• Supports deployment in extreme weather conditions
• Generates dense and precise 3D point clouds
• Enhances situational awareness for autonomous systems
• Simplifies integration into robotic and vehicle platforms
• Increases operational reliability in outdoor environments
• Minimizes external hardware requirements
Performance Advantages
The MultiSense S27 is built for real-world autonomy applications where reliable perception is critical. Its advanced stereo vision technology captures detailed depth information and generates high-density point clouds for mapping, navigation, and object detection.
Integrated onboard processing performs stereo matching and environmental modeling directly within the camera, reducing processing loads on host systems and enabling faster autonomous decision-making.
Applications
• Autonomous ground vehicles
• Mobile robotics
• Agricultural automation
• Defense and military systems
• Industrial inspection
• Mining operations
• Construction equipment automation
• Smart infrastructure monitoring
• Marine and offshore robotics
• Research and development platforms
• Warehouse automation
• Unmanned vehicle systems
Technical Specifications
• CPU: 1.2GHz Quad-Core ARM Processor
• GPU: 500MHz ARM Mali-400 MP2
• Memory: 4GB DDR4 RAM
• Mapping Sensor: BMI160 IMU
• Programmable Logic: 150,000 Logic Cells
• Baseline: 27cm
• Resolution (Monochrome): 1920 × 1280
• Resolution (RGB): 1920 × 1188
• Frame Rate: Up to 30 FPS
• Monochrome Shutter Type: Global Shutter
• RGB Shutter Type: Rolling Shutter
• Aperture: F/2.8
• Bit Depth: 8-bit
• Operating Temperature: -40°C to 80°C
• IP Rating: IP67
• Humidity Rating: Up to 93%
• Shock Resistance: 100G, 2ms
• Vibration Rating: 15.0 GRMS
• Regulatory Compliance: RoHS
• Weight: 2.1kg
• Dimensions: 35.0cm × 16.0cm × 6.0cm
• Maximum Detection Range: Up to 1296m
Why Choose MultiSense S27?
The MultiSense S27 combines rugged construction, long-range stereo vision, and advanced onboard processing in a single integrated platform. Designed specifically for autonomous systems operating in challenging environments, it delivers accurate depth sensing, high-quality point cloud generation, and reliable performance without requiring additional processing hardware.
Its wide-angle coverage, long-range detection capabilities, and industrial-grade durability make it an ideal choice for organizations developing next-generation robotics, autonomous vehicles, and intelligent machine vision solutions.
Conclusion
The MultiSense® S27 Stereo Camera delivers industry-leading 3D perception, robust environmental protection, and powerful onboard processing for demanding autonomy and robotics applications. With its 27cm baseline, IP67-rated design, and high-precision depth sensing capabilities, the S27 provides the performance and reliability required for advanced autonomous operations in real-world environments.
