DX2 Room Hub – Intelligent Meeting Room Control, Switching and Collaboration Platform

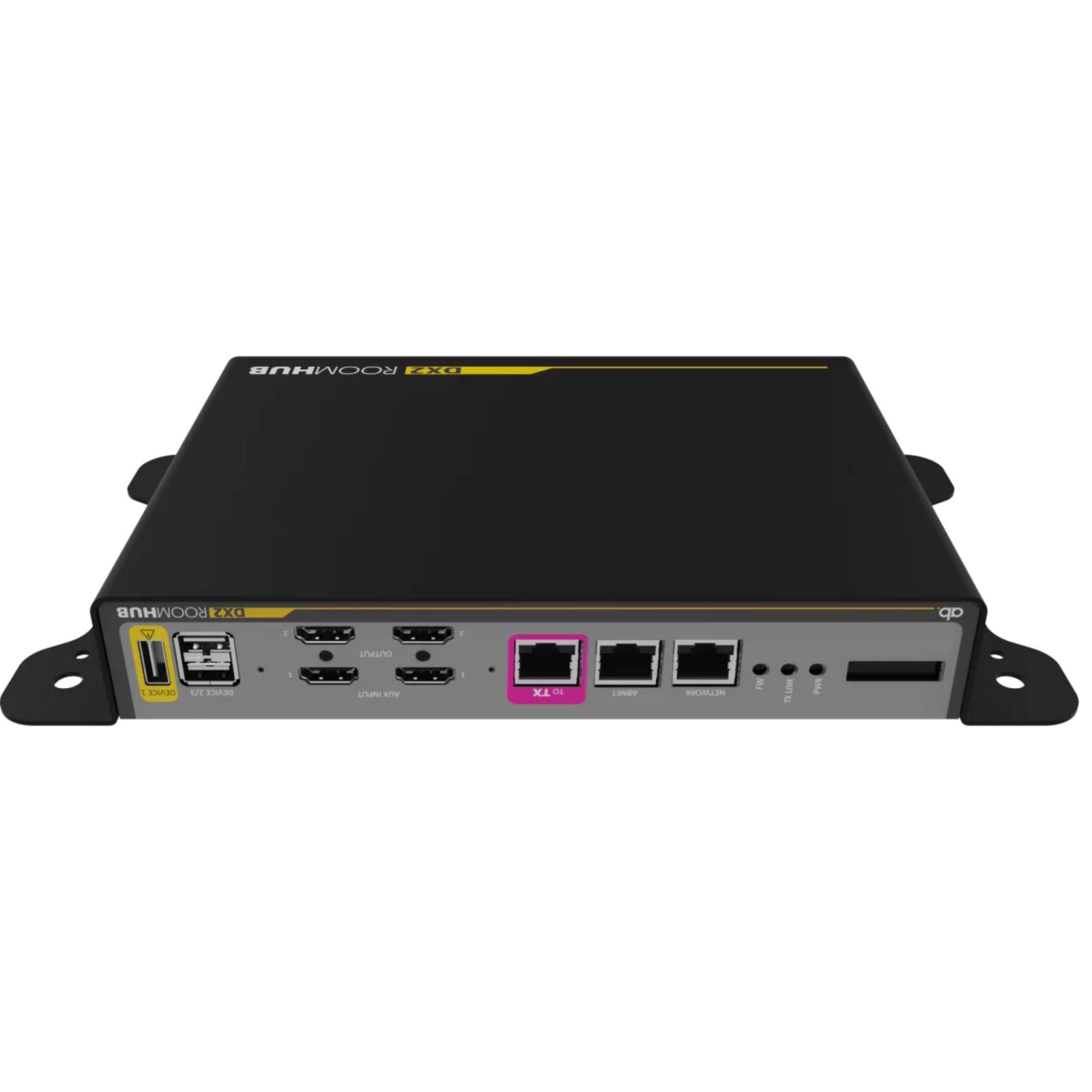

DX2 Room Hub Overview
The DX2 Room Hub is a powerful room control and signal management solution designed to simplify modern meeting spaces, conference rooms, boardrooms, classrooms, and collaboration environments. Acting as the central intelligence of the room, the DX2 Room Hub provides video conferencing control, signal routing, device management, display automation, and system integration from a single platform.
Designed to work seamlessly with the TX2 Table Hub, the DX2 Room Hub delivers uncompressed 4K video, USB extension, room control, and device management over a single Cat6a or Cat7 connection, creating a streamlined and scalable AV infrastructure.
Centralized Room Management
The DX2 Room Hub serves as the core control system for meeting spaces, managing video conferencing devices, displays, source switching, USB peripherals, and room automation functions. It supports a wide range of video conferencing solutions, including videobars and traditional conferencing codecs, enabling organizations to standardize room technology across multiple spaces.
Key Features of the DX2 Room Hub
Video Conferencing Integration
The DX2 Room Hub is designed to work with most video conferencing platforms, videobars, and traditional conferencing codecs. This flexibility allows organizations to deploy their preferred collaboration technology without compromising functionality.
Bring Your Own Device (BYOD) Support
Users can connect their own laptops and devices for meetings and presentations while leveraging the room’s existing cameras, microphones, speakers, and displays. BYOD support enhances user flexibility and simplifies hybrid collaboration.
Advanced Monitoring and Management API
A licensable API continuously monitors system functionality, connectivity status, and operational performance. This data can be integrated into third-party management platforms, helping IT teams simplify maintenance, diagnostics, and proactive support.
Uncompressed 4K60 4:4:4 Video Performance
The DX2 Room Hub supports uncompressed Ultra HD video at 4K 60Hz with full 4:4:4 chroma sampling across both inputs and outputs, ensuring exceptional image clarity for presentations, video conferencing, and digital content.
Long-Distance TX2 Connectivity
A single Cat6a or Cat7 connection links the DX2 Room Hub to the TX2 Table Hub over distances up to 35 meters. This connection transports video, audio, USB, control signals, and power, reducing installation complexity and cable requirements.
Web-Based Configuration and Control
An integrated web server provides convenient browser-based access for system setup, configuration, monitoring, and control. Administrators can manage room settings without requiring specialized software.
Intelligent Input Management
Two auxiliary HDMI input ports with automatic signal sensing detect active sources and simplify switching between connected devices.
Flexible HDMI Outputs
Two independently scalable HDMI output ports support displays, confidence monitors, recording devices, and content distribution systems. Independent scaling ensures optimal resolution and compatibility for each connected display.
Advanced EDID and HDCP Management
Independent EDID control for each input enables reliable source compatibility, while selectable HDCP settings provide flexibility for different content-sharing and enterprise AV requirements.
USB Device Connectivity
Three USB device ports support conferencing peripherals and collaboration devices, with two ports featuring configurable power control for improved device management and automation.
ABNET Integration
Native ABNET connectivity allows seamless integration with AB peripheral devices, including touch panels and room control accessories.
Display and Device Control
Programmable CEC Display Control
The DX2 Room Hub can automatically control compatible displays using HDMI-CEC commands, helping automate power management and room startup procedures.
Dual RS232 Display Control Ports
Two programmable RS232 ports provide direct control of displays, projectors, and other AV devices for advanced room automation.
Cisco Codec Integration
A dedicated programmable Cisco codec control port enables direct integration with Cisco conferencing systems, simplifying deployment and control.
Third-Party Control System Integration
A programmable RS232 control port supports integration with external automation and room control systems, providing flexibility for complex AV environments.
OLED Status Display
The integrated OLED display provides real-time system status information, helping administrators and technicians quickly identify operational conditions and troubleshoot issues when necessary.
Benefits of the DX2 Room Hub
- Centralized room control and management
- Seamless BYOD collaboration support
- Uncompressed 4K60 4:4:4 video quality
- Simplified installation through a single Cat6a/Cat7 infrastructure link
- Advanced monitoring and remote management capabilities
- Flexible integration with videobars, codecs, displays, and control systems
- Scalable deployment across enterprise meeting spaces
- Reduced maintenance and support requirements
Ideal Applications
The DX2 Room Hub is ideal for:
- Corporate boardrooms
- Executive meeting spaces
- Hybrid collaboration environments
- Video conferencing rooms
- Training facilities
- Universities and educational institutions
- Government and public sector facilities
- Enterprise AV deployments
- Multi-room collaboration systems
Conclusion
The DX2 Room Hub provides the intelligence, control, and connectivity required for modern meeting environments. Combining video conferencing integration, signal routing, display automation, USB management, and advanced monitoring capabilities, the DX2 Room Hub serves as the foundation of a reliable and future-ready collaboration ecosystem. When paired with the TX2 Table Hub, it delivers a complete room connectivity solution that enhances productivity, simplifies management, and supports seamless hybrid collaboration.
