TX2 Table Hub – Advanced USB-C & HDMI Connectivity for Modern Meeting Spaces
TX2 Table Hub Overview

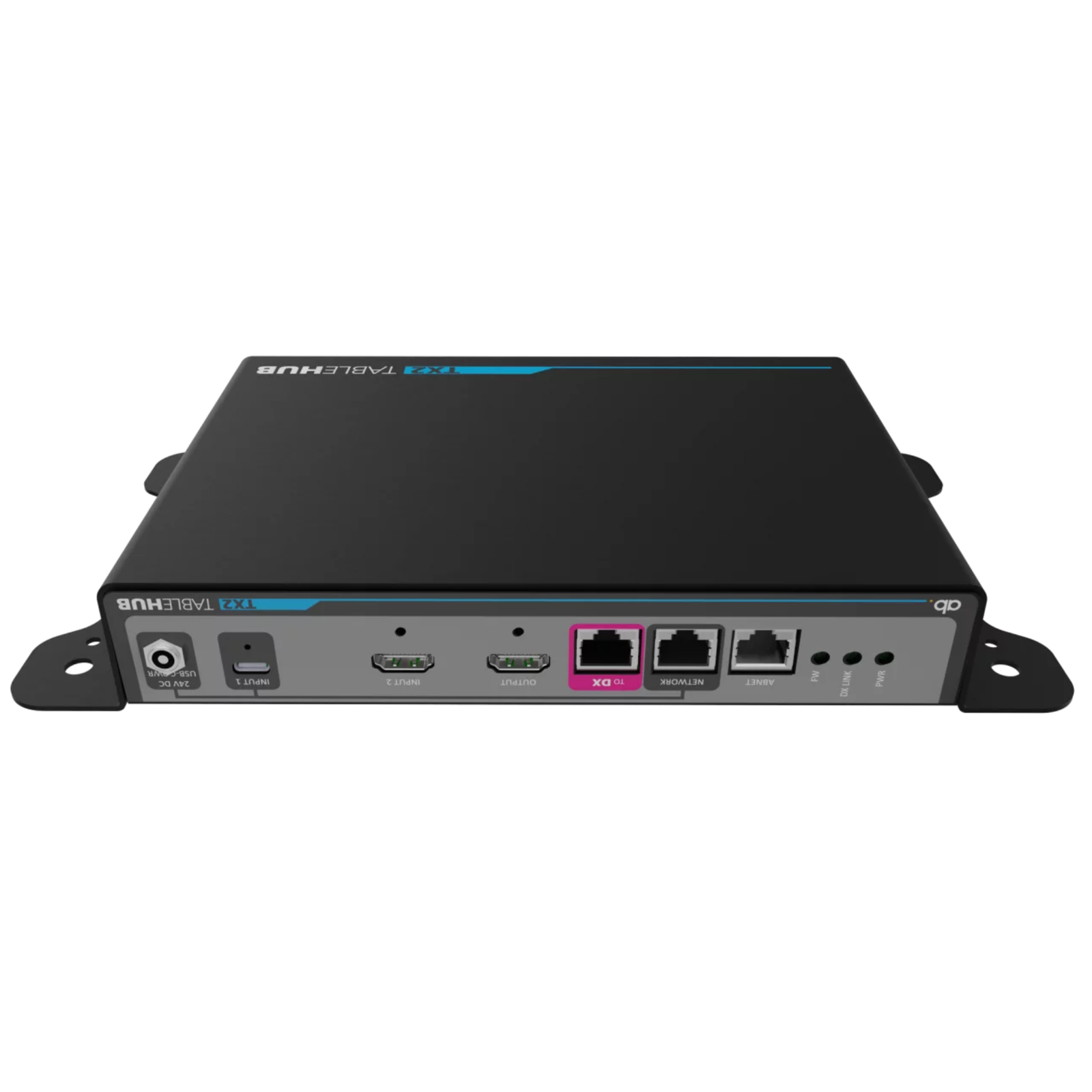

The TX2 Table Hub is a professional AV connectivity solution designed to extend USB-C and HDMI signals over long distances to the DX2 Room Hub. Engineered for conference rooms, boardrooms, training spaces, classrooms, and hybrid collaboration environments, the TX2 Table Hub delivers high-performance video, USB, network, and control connectivity through a single infrastructure link.
By providing convenient table-mounted access to USB-C and HDMI sources, the TX2 Table Hub enables users to connect laptops and presentation devices effortlessly while maintaining exceptional video quality and reliable data transmission.
Key Features of the TX2 Table Hub
USB-C and HDMI Connectivity
The TX2 Table Hub offers fully featured USB-C and HDMI inputs, allowing users to connect a wide range of laptops, tablets, and presentation devices. Intelligent input signal sensing automatically detects active sources for a streamlined user experience.
Uncompressed 4K60 4:4:4 Video Transmission
Support for uncompressed 4K UHD video at 60Hz with full 4:4:4 chroma sampling ensures crystal-clear image quality for presentations, spreadsheets, video conferencing, and detailed visual content.
Long-Distance Signal Extension
Designed to work seamlessly with the DX2 Room Hub, the TX2 Table Hub transmits video, USB, network, and control signals over a single Cat6a or Cat7 cable connection, simplifying installation and reducing cabling requirements.
Independent EDID Management
Each input features independent EDID control, allowing system integrators to optimize display compatibility and ensure reliable source-to-display communication.
HDCP Management
Flexible HDCP support or blocking enables compatibility with a variety of AV workflows, content-sharing requirements, and enterprise environments.
Local HDMI Output with Independent Scaling
An independently scalable HDMI output supports local monitors, confidence displays, content capture devices, and recording systems without affecting the primary signal path.
Network Connectivity via USB-C
The integrated network pass-through feature provides wired network access to connected USB-C devices, helping users maintain reliable and secure connectivity during meetings and presentations.
High-Speed USB 2.0 Data Transmission
The system supports USB 2.0 connectivity with data rates up to 350 Mbit/s, enabling reliable integration with conferencing peripherals, touch displays, USB devices, and collaboration technologies.
ABNET Control Integration
An ABNET control connection supports integration with AB Tablebox touch panels, providing intuitive room control and enhanced meeting room functionality.
Single-Cable Infrastructure Design
The TX2 Table Hub connects to the DX2 Room Hub using a Cat6a or Cat7 cable, which simultaneously carries signals and power. This simplifies deployment, minimizes cable clutter, and reduces installation costs.
Optional USB Expansion Support
An input for optional USB expansion enables additional flexibility for integrating peripherals and extending room capabilities.
Benefits of the TX2 Table Hub
- Supports professional-grade USB-C and HDMI connectivity
- Delivers uncompressed 4K60 4:4:4 video quality
- Simplifies meeting room installations with a single Cat6a/Cat7 connection
- Provides reliable USB, network, and control signal transport
- Enhances collaboration and presentation workflows
- Supports advanced AV integration and system customization
- Reduces cable complexity and improves table aesthetics
Ideal Applications
The TX2 Table Hub is ideal for:
- Corporate conference rooms
- Executive boardrooms
- Hybrid meeting spaces
- Training facilities
- Higher education classrooms
- Government facilities
- Collaboration spaces
- Presentation environments
- Enterprise AV installations
Conclusion
The TX2 Table Hub is a powerful table connectivity solution that combines USB-C, HDMI, USB, network, and control integration into a single platform. Designed to work with the DX2 Room Hub, it delivers uncompromised 4K video performance, intelligent source management, and simplified installation for today’s demanding collaboration environments. Whether deployed in corporate, educational, or professional AV settings, the TX2 Table Hub provides the connectivity foundation required for efficient and future-ready meeting spaces.
