Mixed reality that goes where you go

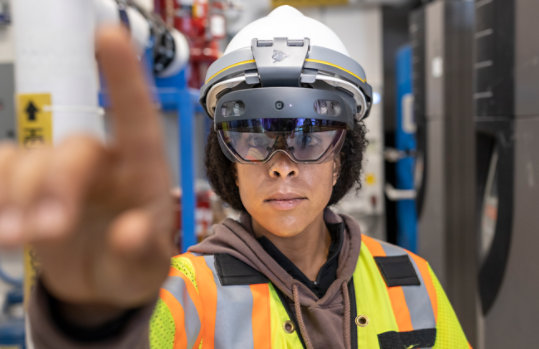

Deploy the Trimble XR10 with HoloLens 2 in safety-controlled industrial environments, right out of the box.
Designed to enhance worker productivity
HoloLens 2 is an ergonomic, untethered self-contained holographic device with enterprise-ready applications to increase user accuracy and output.
Compliant, safe, and hands-free
Certified to ANSI, CSA, and EN requirements for hardhat impact and electrical safety, the Trimble XR10 enables the capabilities of mixed reality in safety controlled environments.
Intrinsically safe
The Trimble XR10 with HoloLens 2 is suitable for use in Class I, Division 2-Groups A, B, C, and D hazardous location environments.

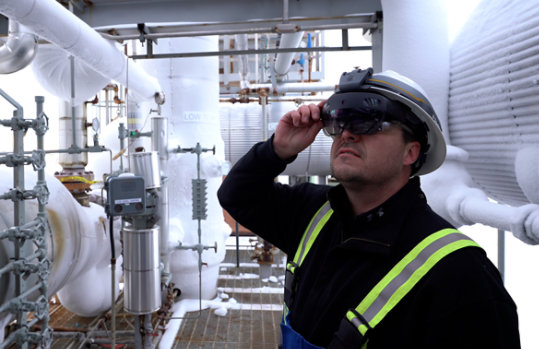

Purpose-built for the worksite
Each Trimble XR10 with HoloLens 2 comes with a built-in bone-conduction headset, enabling 2-way audio communications in up to 115dB ambient noise environments, and is compatible with most hardhat-mounting PPE.
Optics |
See-through holographic lenses (waveguides)
|
|---|---|
Resolution |
2k 3:2 light engines
|
Head tracking |
4 visible light cameras
|
Eye tracking |
2 IR cameras
|
Depth |
1-MP Time-of-Flight depth sensor
|
Camera |
8-MP stills, 1080p30 video
|
Microphone array |
5 channels
|
Speakers |
Mobilus mobiWAN_TR bone-conductive Bluetooth® headset, functional up to 115 dB ambient noise environment
|
Storage |
64-GB UFS 2.1
|
WiFi |
802.11ac 2×2
|
Bluetooth® |
5.0
|
Fit |
Fits over glasses and safety glasses
|
Hardhat |
Compatible with MSA V-Gard (Cap Style and Full Brim) with Fas-Trac III Suspension
|
Industry Standard Accessory Mounts |
compatible with standard 3rd-party PPE accessories (earmuffs, chin straps, and more)
|
Hardhat Impact Protection |
ANSI/ISEA Z89.1-2014 Type 1, Class E (OSHA Compliant) || CSA Z94.1 || EN 397:2012 + A1:2012 || AS/NSZ 1801 || GB2811-2017
|
Intrinsic Safety |
UL Class I, Division 2; UL 121201 & CSA C22.2 NO. 213
|
Visor Basic Impact Certification |
ANSI Z87.1-2015; CSA Z94.3-07, EU EN 166, AS/NZS 1337.1
|
Ingress Protection Rating |
IP50 (dust protected)
|
Weight |
0.79kg (1.75lbs) XR10 / 1.25kg (2.75bs) with hardhat and mobiWAN_TR
|
Operating Temperature |
+10°C (+50°F) to +27°C (+81°F)
|
Storage Temperature |
-20°C (-4°F) to +60°C (+140°F)
|
Operating/Storage Humidity |
8% to 90% RH (Relative Humidity)
|
What’s in the box |
Trimble XR10
Integrated HoloLens 2 MSA V-Gard hardhat mobiWAN™ audio headset Ruggedized backpack Microfiber cloth Charger USB-C® cable |
What’s Included
- HoloLens 2 +
- UL Class I, Division 2 certified
- Hard hat integrated
- Noise-cancelling audio output
