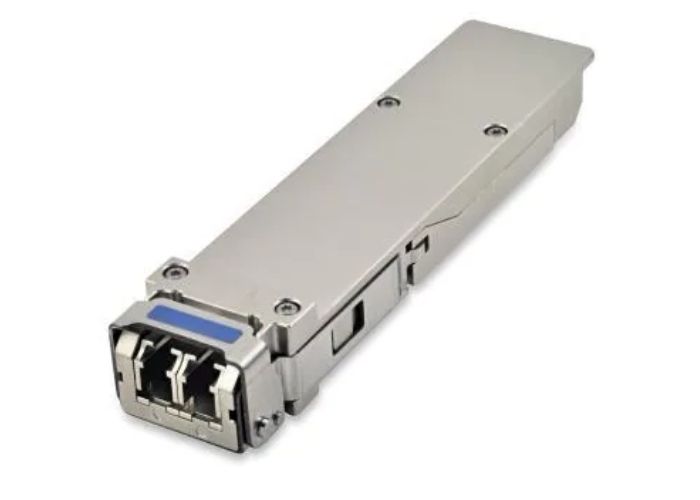

Finisar’s FTLC1141RDNL 100G CFP4 transceiver modules are designed for use in 100
Gigabit Ethernet interfaces over single mode fiber. They are compliant with the CFP MSA1, IEEE 802.3ba 100GBASE-LR42 and IEEE 802.3bm CAUI-45. Digital diagnostics functions are available via the MDIO interface, as specified by the CFP MSA and Finisar Application Note AN-20xx 4. The transceiver is RoHS compliant per Directive
2011/65/EU3.

PRODUCT FEATURES

 Hot-pluggable CFP4 form factor
 Supports 103.1Gb/s aggregate bit
rate
 Power dissipation < 5W
 RoHS compliant
 Commercial case temperature range
of 0°C to 75°C
 Single 3.3V power supply
 Maximum link length of 10km on
Single Mode Fiber (SMF)
 4x25Gb/s DFB-based
LAN-WDM transmitter
 4x25G electrical interface
 Duplex LC receptacles
 MDIO management interface

APPLICATIONS

 100GBASE-LR4 100G Ethernet
