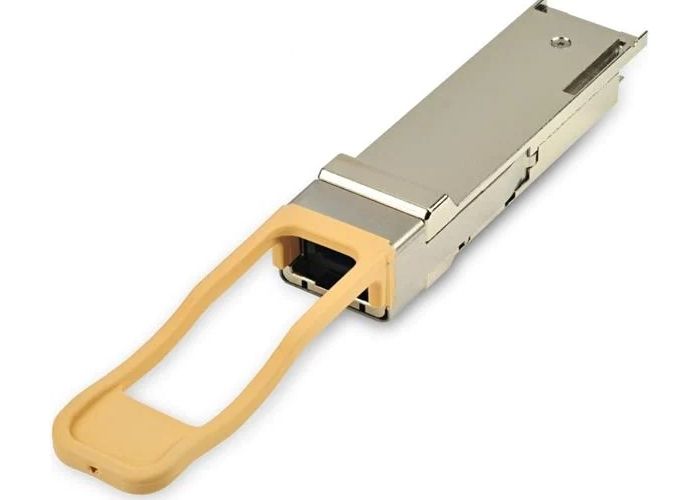

Finisar’s FTL410QD2C QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA1,2 and IEEE 802.3ba 40GBASE-SR43 and compatible with IEEE 802.3ae 10GBASE-SR4. The optical transceiver is compliant per the RoHS Directive 2011/65/EU5 . See Finisar Application Note AN-2038 for more details6.
PRODUCT FEATURES
• Four-channel full-duplex
transceiver module
• Hot Pluggable QSFP+ form factor
• Maximum link length of 300m on
OM3 Multimode Fiber (MMF)
and 400m on OM4 MMF
• Multirate capability: 1.06Gb/s to
10.5Gb/s per channel
• Unretimed XLPPI electrical
interface
• Low power dissipation: <1.5W
• Reliable VCSEL array technology
• Commercial operating case
temperature range: 0ºC to 70ºC
• Single 1×12 MPO receptacle
• RoHS-6 Compliant (lead-free)
APPLICATIONS
• 40GBASE-SR4 40G Ethernet
• Breakout to 10GBASE-SR Ethernet
• Proprietary interconnections
