This M.2 NVMe SSD PCIe x4 Adapter can support module of different size from 42mm to the Extra Long 110mm. It offers the fastest boot or data access possible via the PCIe interface using 4 lanes of data path straight to the NVMe SSD resulting in super-fast data transfer. This adapter allows for flexible installation of an M.2 (NGFF) NVMe or PCIe AHCI SSD of different size like 42, 60, 80, or 110mm in length with varying and ever growing capacity. This M.2 adapter will give you the best performance possible for your system.
Support M.2 NVMe Module Size of 110mm to 42mm
Allow for bigger capacity using the 110 mm length Size
Support PCI Express Specs v3.0
Provide Faster speed using Faster PCIe Bus
Features
- Support Extra Long M.2 NVMe Module like 110mm, 80, 60, or 42
- Support for M.3 with 30mm width x 110mm length Module
- Support M.2 (NGFF) PCIe based (NVMe or AHCI) SSD to PCIe x4 slot
- Support M.2 interface with M key only, do not support M+B key
- Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0
- Supports system boards with PCIe x4,x8,x16 slots
- Uses minimum power from PCIe 3.3V for better power management

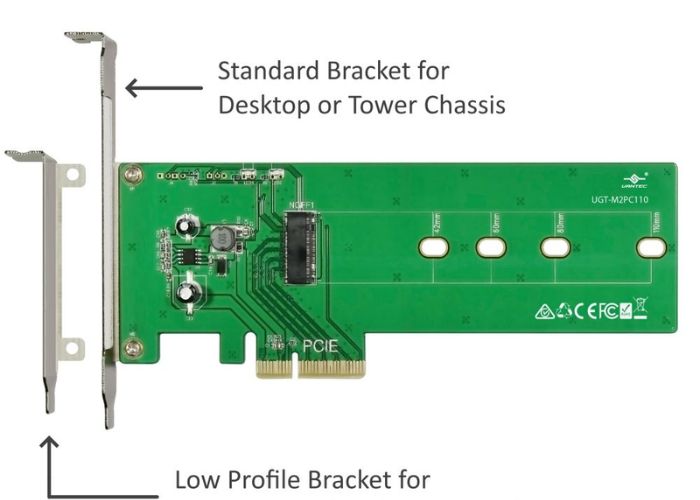

- Low Profile Bracket included
Specifications
| Make and Model | Vantec M.2 NVMe PCIe X4 Adapter |
|---|---|
| Part Number | UGT-M2PC110 |
| Color | Green |
| OS support | Windows 7/8/8.1/10 (Windows 10 preferred), or Linux (Latest Kernel) |
| M.2 Type Support | NVMe or AHCI SSD using M Key only |
| M.2 size | Length support 22×110, 22×80, 22×60, 22x42mm |
| Internal Interface | 1 x M.2 (NGFF), M Key |
| PCIe Interface | PCIe v3.0 or PCIe v2.0 x4 (4 lanes) |
| Power | PCIe Bus powered (3.3V) |
| Requisite | System board PCIe x4 or x8 or x16 slot Booting, requires System UEFI BIOS with booting Support and latest OS |
| Dimensions | 7.4 x 4.8 x 0.9 inches / 189 x 121 x 22 mm |
| Weight | 4 oz. / 113 g |
Package Contents
- Vantec M.2 NVMe PCIe X4 Adapter
- Mount and Screws set
- Low Profile Bracket
- Quick Installation Guide
