Product Overview

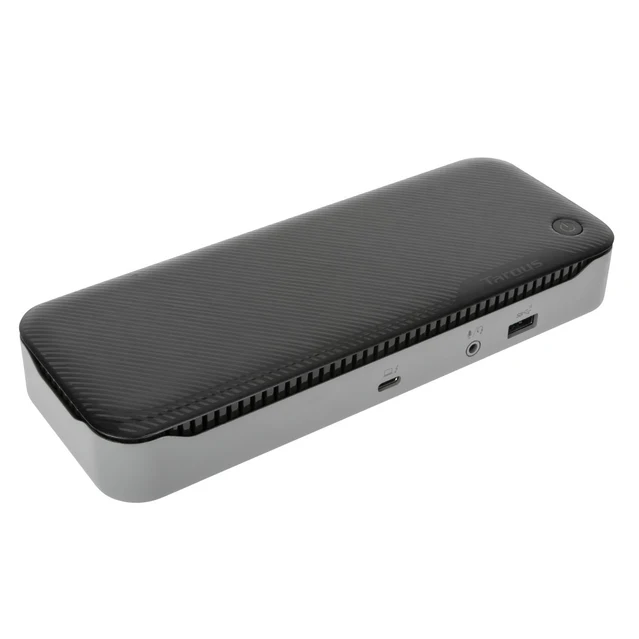

The Targus DOCK215USZ Thunderbolt 3 DV4K Docking Station is a high-performance docking solution designed for professionals who require high-speed connectivity, multiple displays, and reliable laptop charging. Featuring Thunderbolt 3 technology with data transfer speeds of up to 40Gbps, it helps expand laptop connectivity for demanding business and creative workflows.
Supporting dual 4K UHD displays at up to 60Hz or a single 8K display at up to 30Hz on compatible Thunderbolt 3 systems, the DOCK215USZ is suitable for video editing, graphic design, photography, animation, CAD/CAM applications, and enterprise workstations.
The docking station provides up to 85W Power Delivery for compatible laptops, along with USB-C, USB-A, Gigabit Ethernet, and audio connectivity. Its compact design and VESA mounting compatibility help create a clean, efficient, and organized workspace.
Key Features
- Thunderbolt 3 Connectivity: Supports data transfer speeds of up to 40Gbps.
- Dual 4K Display Support: Connect two compatible 4K UHD monitors at up to 60Hz.
- Single 8K Display Support: Supports resolutions up to 8K at 30Hz on compatible systems.
- 85W Power Delivery: Charges compatible laptops through the docking station.
- High-Speed USB-C Ports: Two USB-C 3.2 Gen 2 ports support data transfer speeds up to 10Gbps.
- USB-A Connectivity: Includes two USB-A 3.2 Gen 1 ports and one USB-A 3.2 Gen 2 port for peripherals.
- DisplayPort Outputs: Two DisplayPort 1.4 ports support compatible high-resolution displays.
- Gigabit Ethernet: Provides reliable wired network connectivity.
- Audio Connectivity: Includes a 3.5mm audio combo input/output port.
- Flexible Installation: Compatible with the optional Targus VESA mounting bracket ACX003GLZ.
- Broad Compatibility: Supports compatible Windows and macOS systems, with additional platform compatibility depending on device configuration.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Targus |
| Model | DOCK215USZ |
| Product Type | Thunderbolt 3 DV4K Docking Station |
| Connection Technology | Thunderbolt 3 |
| Host Interface | Thunderbolt 3 |
| Maximum Data Transfer Speed | Up to 40Gbps |
| Display Outputs | 2 × DisplayPort 1.4 |
| Dual Display Resolution | Up to 4K UHD (3840 × 2160) at 60Hz |
| Single Display Resolution | Up to 8K at 30Hz |
| USB-C Ports | 2 × USB 3.2 Gen 2, up to 10Gbps |
| USB-A Ports | 2 × USB 3.2 Gen 1, up to 5Gbps |
| Additional USB-A Port | 1 × USB 3.2 Gen 2, up to 10Gbps |
| Laptop Power Delivery | Up to 85W |
| Network Connectivity | 1 × Gigabit Ethernet (RJ45) |
| Audio | 1 × 3.5mm combo audio input/output |
| Security | Integrated security lock slot |
| Mounting Compatibility | Optional Targus ACX003GLZ VESA mounting bracket |

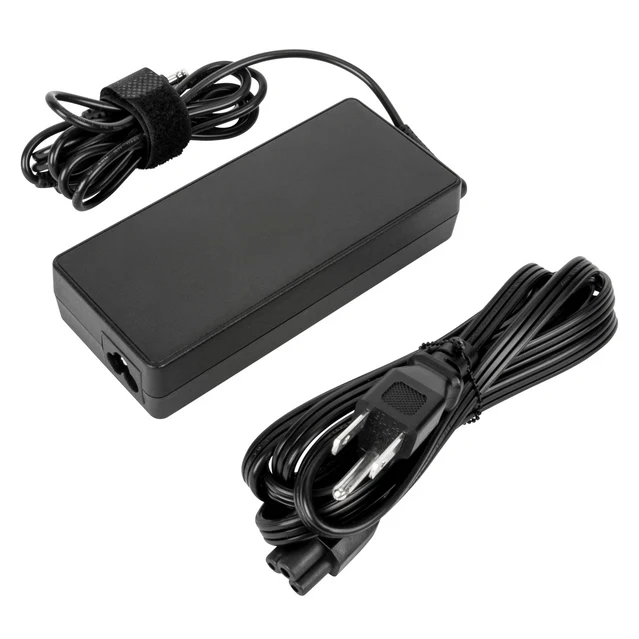

| Power Adapter | 135W AC power adapter |
| Dimensions | Approximately 8.06 × 3 × 1.25 inches |
| Weight | Approximately 0.70 lb |
| Operating System Compatibility | Windows and macOS; other platforms subject to compatibility |
| Warranty | Three-year limited manufacturer warranty |
Applications
- Professional video editing and post-production
- Graphic design and photography studios
- Animation and content creation workstations
- CAD/CAM and engineering applications
- Corporate offices and enterprise workstations
- Multi-monitor productivity environments
