Product Overview
The Targus DOCK182USZ USB-C Universal DV4K Docking Station is designed to expand laptop connectivity and enhance productivity in corporate offices, enterprise workstations, and hybrid working environments. Featuring DisplayLink technology and versatile USB-C connectivity, this docking station allows users to connect multiple displays, USB peripherals, wired networks, and audio accessories through a single docking solution.
Supporting single or dual 4K UHD displays at up to 60Hz, the Targus DOCK182USZ is ideal for professionals who require additional screen space for multitasking, presentations, business applications, and data-intensive workflows. Its HDMI 2.0 and DisplayPort 1.2a outputs provide flexible connectivity for compatible monitors.
With USB-C Power Delivery 3.0 supporting up to 100W, the docking station can power compatible laptops while connecting essential peripherals. Multiple USB-A ports, a high-speed USB-C port, Gigabit Ethernet, and audio connectivity make it a practical solution for modern office workstations.
Key Features
- Universal Laptop Compatibility: Supports compatible USB-C and USB-A laptops, including compatible Thunderbolt 3 systems.
- Dual 4K Display Support: Supports two 4K UHD displays at up to 3840 × 2160 resolution at 60Hz.
- Flexible Video Outputs: Features two HDMI 2.0 ports and two DisplayPort 1.2a ports for compatible display configurations.
- 100W Power Delivery: Provides up to 100W Power Delivery 3.0 for compatible USB-C laptops.
- High-Speed USB-C Port: Includes one USB-C 3.2 Gen 2 downstream port supporting data transfer speeds up to 10Gbps.
- Multiple USB-A Ports: Four USB-A 3.2 Gen 1 ports support compatible peripherals, with one port supporting fast charging.
- Gigabit Ethernet: Provides wired network connectivity for reliable business operations.
- Audio Connectivity: Includes a 3.5mm combo audio input/output port.
- Compact Workspace Design: Supports optional VESA mounting with the compatible Targus ACX003GLZ mounting bracket.
- Enterprise Management Utilities: Supports compatible Targus software utilities for network management and docking workstation configuration.
- Three-Year Limited Warranty: Manufacturer warranty coverage subject to applicable terms.

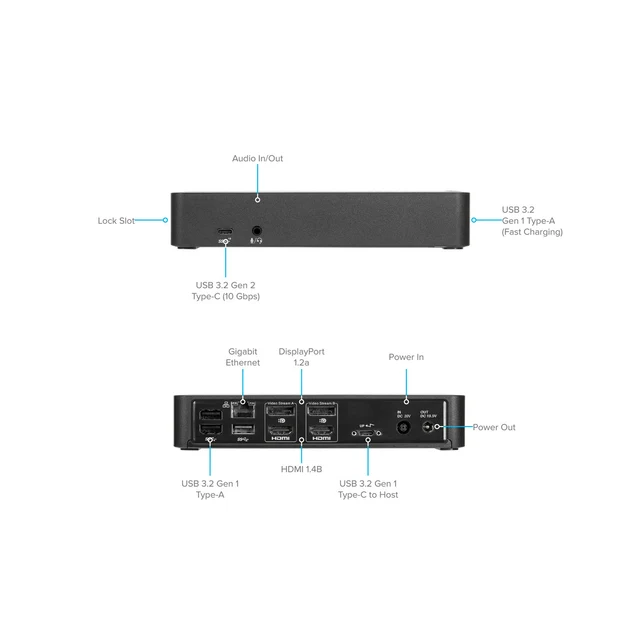

Technical Specifications
| Specification | Details |
|---|---|
| Brand | Targus |
| Model Number | DOCK182USZ |
| Product Type | USB-C Universal DV4K Docking Station |
| Docking Technology | DisplayLink DL-6950 |
| Host Connectivity | USB-C and USB-A |
| Thunderbolt Compatibility | Compatible with Thunderbolt 3 hosts |
| HDMI Outputs | 2 × HDMI 2.0 |
| DisplayPort Outputs | 2 × DisplayPort 1.2a |
| Maximum Dual Display Resolution | Up to 4K UHD (3840 × 2160) at 60Hz |
| Maximum Single Display Resolution | Up to 4K UHD at 60Hz |
| USB-C Downstream Port | 1 × USB 3.2 Gen 2, up to 10Gbps |
| USB-A Downstream Ports | 4 × USB 3.2 Gen 1, up to 5Gbps |
| USB-A Fast Charging | 1 port |
| Laptop Power Delivery | Up to 100W |
| Ethernet | 1 × Gigabit Ethernet (RJ45) |
| Audio | 1 × 3.5mm combo audio input/output |
| Security | Integrated security lock slot |
| Mounting Compatibility | Targus ACX003GLZ VESA mounting bracket, sold separately |
| Power Adapter | 150W AC power adapter |
| Dimensions | Approximately 17.93 × 8.26 × 3.18 cm |
| Weight | Approximately 345 g |
| Operating System Compatibility | Compatible Windows, macOS, Android, ChromeOS, and Ubuntu systems |
| Warranty | Three-year limited manufacturer warranty |
Note: Display resolution and charging performance depend on the host laptop, operating system, graphics capabilities, and connected peripherals. The docking station’s 100W Power Delivery requires a compatible host device.
Applications
- Corporate offices and enterprise workstations
- Dual-monitor productivity setups
- Hybrid and remote working environments
- Business laptop connectivity and charging
- IT infrastructure and workstation deployments
- Professional environments requiring multiple displays and peripherals
