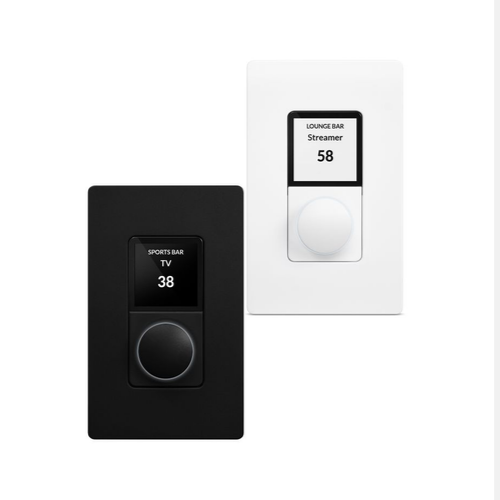

Wall-S1 US – Single Zone PoE-Powered Wall Controller
The Blaze Wall-S1 US is a modern, easy-to-use wall controller designed for seamless integration with PowerZone™ Connect amplifiers. Featuring a sleek Danish design with a matte finish, concealed screws, and customizable lighting options, it blends perfectly into any installation. Powered directly via PoE, the Wall-S1 US eliminates the need for external power and provides reliable single- or multi-zone audio control with secure access options.
Features
- Stylish Danish design with high-performance polymer material and matte finish
- Available in White (RAL9003) and Black (RAL9005) US versions
- 4 color screen schemes, 4 brightness levels, and 4 button backlight settings
- Instant pairing with up to 8 Wall-S1 controllers per PowerZone™ Connect amplifier
- Configurable for single- or multi-zone control
- Supports amplifier power on/off control
- Optional 4-digit PIN protection with multi-level access
- PoE Class 1 (48V) powered over Cat5e or higher – no external power required
- DHCP and static IP addressing support
Specifications
- SKU / Color:
- BGM-888-003 (White US)
- BGM-888-004 (Black US)
- Dimensions (WxHxD): 2.78″ x 4.53″ x 1.68″ (70.61mm x 115.06mm x 42.67mm)
- Weight: 0.2625 lbs (0.12 kg)
