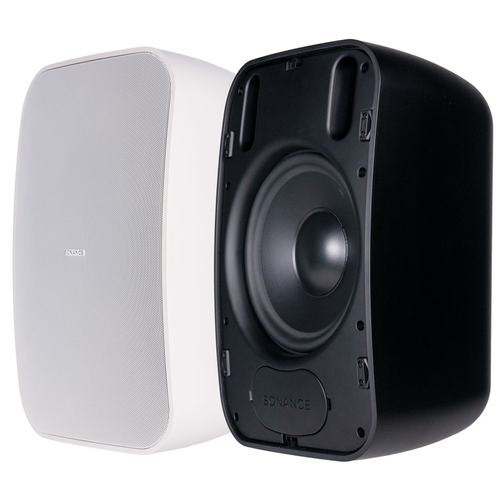

Sonance PS-S83WT MKII Surface-Mount Woofer
The Sonance PS-S83WT MKII is a professional-grade surface-mount woofer delivering powerful, precise bass with an ultra-high-excursion 8″ driver. Its weatherized IP45-rated enclosure ensures durability in indoor and outdoor environments. With the FastMount® bracket and front-located cable connector, installation is quick, clean, and minimalistic. Certified to UL1480 and UL2239, this woofer guarantees reliable, consistent performance across any commercial or high-demand audio application. Available in black or white, it’s designed to blend seamlessly into any space.
Key Features
- High sensitivity and superior sonic performance
- Excellent off-axis response for wide coverage
- Durable, heavy-duty voice coil for long-lasting reliability
- Ultra-low saturation transformer for 70V/100V line use
- Consistent tonal performance across the product range
- Minimalistic, paintable design (black or white)
- FastMount® bracket for quick and secure installation
- Front cable connector and tap selector with protective cover
- Corrosion-resistant powder-coated aluminum grille
- Weatherized for indoor/outdoor use (IP45-rated)
Specifications
| Feature | Specification |
|---|---|
| SKU / Color | 40207 (Black), 40208 (White) |
| Driver | 8″ (203mm) Polypropylene Cone, Butyl Rubber Surround |
| Frequency Response (+/-10 dB) | 32 Hz – 300 Hz |
| Frequency Response (+/-3 dB) | 50 Hz – 150 Hz |
| Power Handling | 200 W program, 125 W pink noise |
| Sensitivity | 88 dB (2.83V/1m) |
| Maximum SPL | 110 dB @ 1 m, 116 dB peak |
| Nominal Impedance | 8 Ohms |
| Transformer Taps | 70V / 100V: 120W, 60W, 30W; 70V: 15W |
| Dimensions (WxHxD) | 9.01″ x 14.02″ x 8.58″ (228.85 x 356.11 x 217.93 mm) |
| Grille | Powder-coated aluminum, friction fit |
| Input Connector | Front-mounted four-pin Euro block with loop output |
| Certifications | UL1480, UL2239, NFPA 70, Mil Spec 810, IEC 529 |
| Environmental | MIL-STD-810 (humidity, salt spray, temperature), IEC 529 |
| Mounting Bracket | U-Bracket with Fast Mount® system |
