The Sonance PS-C43RTLP Low Profile In-Ceiling Speaker is designed for tight spaces, fitting beneath HVAC ducts or in 2’x4′ stud bays. Its shallow 3.43″ design features a magnetically secured bezel-less grille for easy painting. With a 4″ woofer and pivoting 1″ tweeter, it delivers exceptional audio performance.

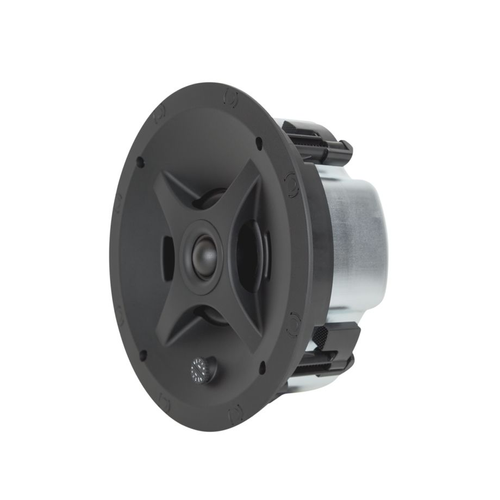

Sonance PS-C43RTLP Professional Series Low Profile In-Ceiling Speaker
Description:
The Sonance PS-C43RTLP is a low-profile in-ceiling speaker designed for tight spaces, such as beneath HVAC ducts or in 2’x4′ stud bays. With a shallow 3.43″ depth, it fits where standard speakers cannot, without compromising audio performance. Its magnetically secured, bezel-less grille allows for easy painting and a clean, minimal look. Featuring a 4″ polypropylene woofer and a pivoting 1″ cloth dome tweeter, it delivers clear highs, rich mids, and deep bass, making it ideal for commercial, professional, and high-end residential installations.
Key Features:
- Low-profile 3.43″ design for tight installation spaces
- Pivoting 1″ cloth dome tweeter with ferrofluid cooling for precise directional highs
- 4″ polypropylene woofer with butyl rubber surround for reliable bass
- Class-leading sensitivity and sonic performance
- Exceptional off-axis response for wide sound coverage
- Heavy-duty voice coil for longevity and reliability
- Full-fidelity transformer ensures uncompromised tonal quality
- Consistent voicing across the Professional Series range
- Bezel-less, paintable grille for a clean, minimalistic aesthetic
- Magnetic grille retention for fast installation and removal
- Finger-adjustable selector tap for easy configuration
- One-step simplified painting process
Specifications:
- Model / SKU: PS-C43RTLP / 45181 (White)
- HF Driver: 1″ (25mm) Cloth Dome, Pivoting, Ferrofluid Cooled
- LF Driver: 4″ (100mm) Polypropylene Cone with Butyl Rubber Surround
- Frequency Response (+/-10dB): 57Hz – 25kHz
- Frequency Response (+/-3dB): 75Hz – 20kHz
- Power Handling (RMS): 60W program, 30W pink noise
- Sensitivity: 87dB (2.83V/1m)
- Maximum SPL: 105dB continuous / 110dB peak
- Nominal Impedance: 8 Ohms
- Transformer Taps: 70V/100V: 30W, 15W, 7.5W | 70V: 3.8W
- Dimensions (Diameter x Depth): 9.13″ x 3.43″ (231.9mm x 87.12mm)
- Cut-Out Diameter: 8.25″ (209.55mm)
- Knockout: Side-mounted 0.75″ (19mm)
- Weight: 6 lbs. (2.72kg)
- Grille: One-piece paintable grille with magnetic retention
- Input Connector: Four-pin Euroblock with loop output connections
- Certifications: UL 1480, UL 2043, NFPA 90A, NFPA 70
- Suspension Points: One, on top surface
