Difference between hsv326 and other capture card:
All other capture cards (hsv321 3211 323 325) needs to work with OBS or other software, and record by computer.
HSV326 no needs to download OBS on your PC, it just need to plug in flash driver, and click the device, it will automally record video into your flash driver, then you can copy the video to your PC.
HD video screen capture recorder are widely used in smart communities, traffic management units, medical systems, education systems, home video capture. especially game video production High-definition video recording does not require computer and HDMI signal can be recording from vidicon TV box. Playstation XBOX and other recognizable files as high-quality video flies to a USB flash drive or removable hard drive.
- Instantly Playback videos recorded and stored on USB storage devices
- Captures 1080p Full HD videos or gameplay from Xbox one, PS4, Switch, DV, VCR, etc onto USB flash drive or external hard disk or PC.
- The maximum input resolution is 1080P/60Hz and the maximum recording resolution is 1080P/30Hz.

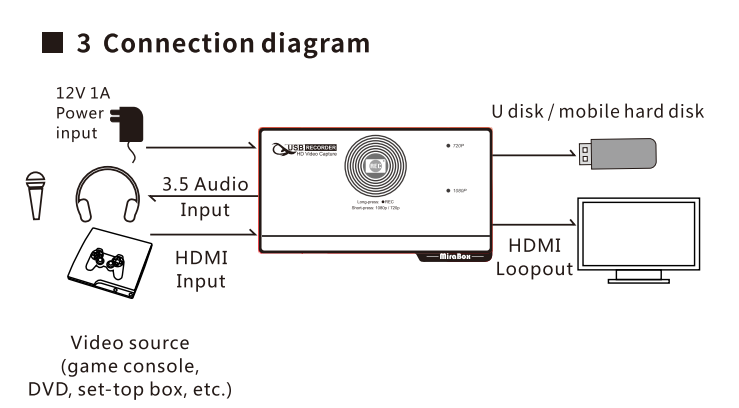

- Support Mic mix recording / 3.5mm headphone output / HDMI loop output/ touch button
- The USB interface can be connected to a storage device U disk, mobile hard disk, TF,SD, etc.) that supports this product format.
- Audio interface is connected to the headset, Mic interface is connected to Mic headphone
- The DC Power interface connects to the 12V1A DC adapter.
- The recorded MP4 files are compatible with PC, Mobile phone and any other platforms.
- Maximum hard disk: USB memory card or USB flash drive (≤64G) mobile hard disk (≤2TB)
Technical Specifications
| Function | PC-free recording | |
|---|---|---|
| Maximum resolution of input | 1080P@60Hz | |
| Highest resolution of pass-through | 1080P@60Hz | |
| Recording resolution | 1080P@30Hz | |
| Audio mix | ✓ | |
| video save | USB memory / HDD storage | |
| One-click Recording | ✓ |
Specification
| Package Dimensions | 5.55 x 3.58 x 3.07 inches |
|---|---|
| Item Weight | 9.2 ounces |
