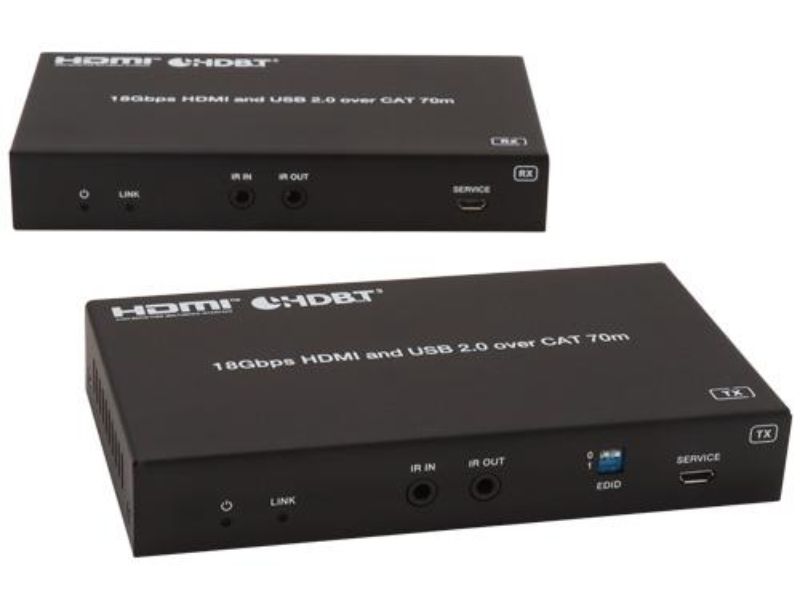

HDBaseT 3.0 Transmitter/Receiver Set with USB 2.0
Features
- HDMI 2.0b and HDCP 2.2 compliant
- Supports 18Gbps video bandwidth
- Supports video resolution up to 4K2K@60Hz (YUV 4:4:4)
- HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass through
- LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-
96/24, DTS High Res, DTS-HD Master Audio, DSD pass through - Transmission distance up to 230ft/70m (4K30/1080P) or
131ft/40m (4K60) via a single CAT6/6A cable - Supports bi-directional POC (Power over Cable), when TX or
RX gets power, the other end does not need an external power
supply - Supports 3.5mm analog audio de-embedding at TX and RX
- EDID management
- Supports bi-directional RS-232 signal pass-through, bi-directional
IR signal control, USB2.0 signal transmission - Compact design for easy and flexible installation
Applications
This 18Gbps HDBaseT Extender can extend HDMI, bi-directional IR control and USB 2.0 signals to a distance up to 131ft 4K60 via a single CAT6 cable.
Specifications
- Extender Type – HDMI
- Extender Type – RS232
- Extender Type – USB
- HDBaseT – Yes
- Spec Sheet available – Yes
- Certifications: CE/FCC/UL
- Operating Temperature (Maximum): 104 F
- Operating Temperature (Minimum): 32 F
- Transmission Range: 230 ft
- AC Voltage (Maximum): 240 Volts
- AC Voltage (Minimum): 100 Volts
- Active Power: 14.28 Watt
- Current Draw: 1 Amps
- DC Voltage: 24 Volts
- Depth: 3.07 in
- Height: 0.91 in
- Width: 5.67 in
- Color: Black
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2
- Video Bandwidth: 18 Gbps
- Video Resolution: Up to 4K@60Hz
- Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
- Color Depth: 8/10/12-bit
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- IR Level: 12Vp-p
- Transmission Distance: 4K60 / 40m; 4K30 / 70m; 1080P / 70m (CAT6/6A cable)
- Transmitter Input: 1x HDMI In
- Outputs: 1HDBaseT Out (RJ45), L R Out (3.5mm stereo mini-jack
- Receiver Input: HDBaseT In (RJ45)
