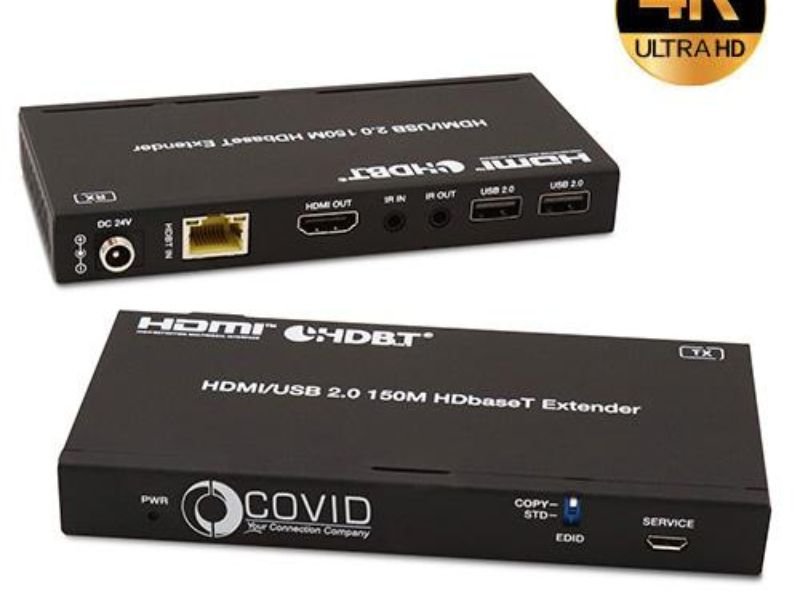

HDBaseT Transmitter/Receiver Set with USB 2.0
Features
- HDMI 2.0b and HDCP 2.2 compliant
- Support 18Gbps video bandwidth
- Support video resolution up to 4K2K@60Hz YUV 4:4:4
- The transmission distance can be extended up to 492ft at the resolution of 1080P@60Hz, or 394ft at 4K2K@60Hz 4:4:4 via a single CAT6 cable
- Support bi-directional IR and USB KVM pass-through
- Support bi-directional POC (Power over Cable) function
- Support USB 2.0 transmission
- EDID management
- Compact design for easy and flexible installation
Applications
This 18Gbps HDBaseT Extender can extend HDMI signal, bi-directional IR control signal and USB KVM signal to a distance up to 492 feet via a single CAT6 cable.
Specifications
- HDBaseT – Yes
- Receiver/Transmitter Format Type – HDMI
- Receiver/Transmitter Format Type – USB
- Spec Sheet available – Yes
- Operating Temperature (Maximum): 104 F
- Operating Temperature (Minimum): 32 F
- Transmission Range: 492 ft
- Color: Black
- HDMI Compliance: HDMI 2.0b
- HDCP Compliance: HDCP 2.2
- Video Bandwidth: 18 Gbps
- Video Resolution: Up to 4K2K at 60Hz YUV 4:4:4
- USB COMPLIANCE: USB 2.0
- IR Level: 5Vp-p
- IR Frequency: Wideband 20K-60KHz
- Transmission Distance: 1080P at 60-150m, 4K60-120m
- Color Space: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit (1080P), 8-bit (4K60), 8-bit, 10-bit, 12-bit (4K24/30)
- HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
- Audio Format: LPCM 71CH, Dolby True HD and DTS-HD Master
- ESD Protection: Human body model – ±8kV (Air-gap discharge) and ±4kV (Contact discharge)
- Housing: Metal Enclosure
- Transmitter Dimensions: 140mm (W)×65mm (D)×18mm (H)
- Receiver Dimensions: 140mm (W)×65mm (D)×18mm (H)
- Transmitter Weight: 245g
- Receiver Weight: 249g
- Power Supply: DC 24V/1A; Supports bi-directional POC function
- Power Consumption: 13.2W (Max)
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20~90% RH (Non-condensing)
