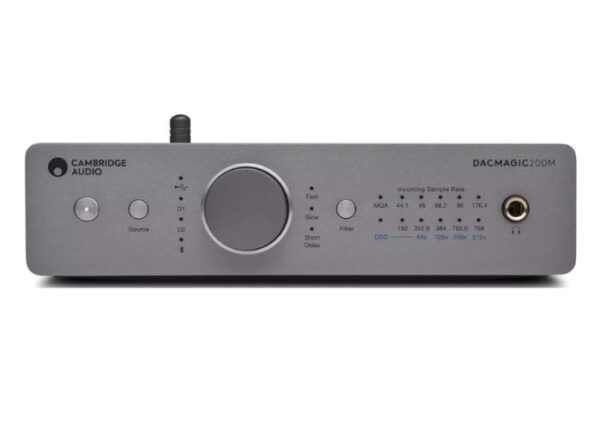

Digital audio is brilliant, but it needs to be analogue audio before you can hear it. And the way it ends up sounding depends entirely on how you convert the digital audio files stored on your computer, on CD or from your favourite streaming service. DacMagic 200M performs the digital-to-analogue conversion perfectly every time, letting all kinds of audio systems sound better than ever before.
- Dual ESS ES9028Q2M DACs – easily handles digital audio files up to 24-bit/768kHz or DSD512
- Supports MQA – be sure you’re listening to artist-approved studio-quality audio
- Digital optical, digital coaxial and USB inputs – connect CD players, games consoles, laptops or other digital audio sources
- Built in Bluetooth aptX – send digital audio files from your smartphone or tablet wirelessly
- Finished in Lunar Grey
THE DETAILS
| DIGITAL TO ANALOGUE CONVERTERS | Dual ESS ES9028Q2M DACs |
| DIGITAL FILTER | Selectable, Fast – Slow – Short delay |
| FREQUENCY RESPONSE | 10Hz to 50kHz (±1dB) |
| THD+N @ 1KHZ 0DBFS | <0.0005% (A-Weighted) |
| SIGNAL TO NOISE RATIO | >115dB (A-Weighted) |
| CROSSTALK @ 10KHZ | < -110dB |
| OUTPUT IMPEDANCE | <50 Ohms (unbal), <100 Ohm (bal) |
| MAX. OUTPUT LEVEL (UNBALANCED) | 2.1V rms (fixed or variable – user selectable) |
| MAX. OUTPUT LEVEL (BALANCED) | 4.2V rms (fixed or variable – user selectable) |
| DIGITAL INPUT WORD WIDTHS SUPPORTED | 16bit (Bluetooth), 16-24bit (Optical, Coaxial), 16-24bit (USB) |
| DIGITAL INPUT SAMPLING FREQUENCIES SUPPORTED | 44.1kHz to 96kHz PCM, DoP64 (Optical), 44.1kHz to 192kHz PCM, DoP64 (Coaxial), 44.1kHz to 768kHz PCM, Native DSD 64x to 512x, DoP 64x to 256x (USB) |
| MQA COMPATIBILITY | Full decoding (Core + Renderer) |
| BLUETOOTH | v4.2, A2DP profile, SBC and AptX codecs |
| ROON TESTED | Yes |
| HEADPHONE OUTPUT THD+N | < 0.001% at 1kHz 0dBFS @ 100mW into 32ohm |
| HEADPHONE OUTPUT S/N | > 115dB (A-Weighted) |
| MAX OUTPUT POWER | >300mW @ 32ohm, >65mW @ 150ohm |
| FREQUENCY RESPONSE | 10Hz – 50kHz (±1dB) |
| RECOMMEND HEADPHONE IMPEDANCE | 10 Ohm to 600 Ohm |
| MAX POWER CONSUMPTION | 12W |
| COLOUR | Lunar Grey |
| DIMENSIONS (HXWXD) | 52 x 215 x 191mm; (2.0 x 8.6 x 7.6”) |
| WEIGHT | 1.2kg/2.6lbs |
