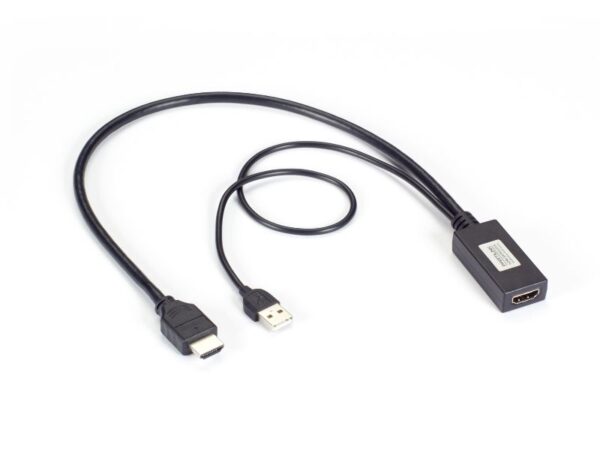

Extend HDMI video signals w/out video degradation. Break typical 15-25-ft HDMI distance limit. Transmit over HDMI 2.0 or 1.4 compliant cable to the HDMI 4K60 display. No external power required. Repeater dongle is plug and play.
TECH SPECS
| Audio | |
| Audio Format supported | Digital audio output over HDMI |
| Compliance | |
| FCC | |
| UL | 1 |
| Environmental | |
| Operating Humidity | 20 to 90% |
| Operating Temperature | 32 to 113° F (0 to 45° C) |
| Storage Temperature | -4 to +140° F (-20 to +60° C) |
| General | |
| Video Bandwidth | 18 Gbps |
| Item Specifications | |
| Connectors | Input: (1) HDMI (Female); Output: Built-in 19.7″ (50-cm) HDMI cable with HDMI (Male) Connector |
| Dimensions | 0.9″H x 0.5″D x 19.7″L (2.5 x 1.35 x 50 cm), including the pigtail cable, length ± 0.8″ (2 cm) |
| Physical | |
| Digital Audio | True |
| HDCP Version | |
| Power | |
| Power Consumption | 1 W max. |
| Power Cord Access | Built-in 19.7″ (50-cm) USB cable with USB Type A male connector; USB Bus Power: 5 VDC |
| Video | |
| Input/Output Resolution Support | Input: 3840 x 2160/4096 x 2160 @ 60 Hz, 4:4:4; Output: 3840 x 2160 / 4096 x 2160 @ 60 Hz, 4:4:4 |
NOTE(s):
Product works with:
- Quad Multiviewer (AVSC-0501QMV).
