Feature Bullets
- Convert any SATA drive into 40-pin IDE interface just like a standard IDE/ATAPI drive. Ideal for computers or embedded systems that are not equipped with SATA controllers.
- Supports any type of SATA III, SATA II and SATA I Devices such as Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk, etc.
- Complete hardware solution; no driver installation is required. Compatible with any OS such as: Windows, DOS, Mac, Linux, etc. that support IDE/ATAPI storage devices
- Mini vertical board with size only 3″ (L) x 0.9″ (W) and mount directly to the back of SATA drive.
- Fully RoHS compliant. Made in Taiwan.
Product Description

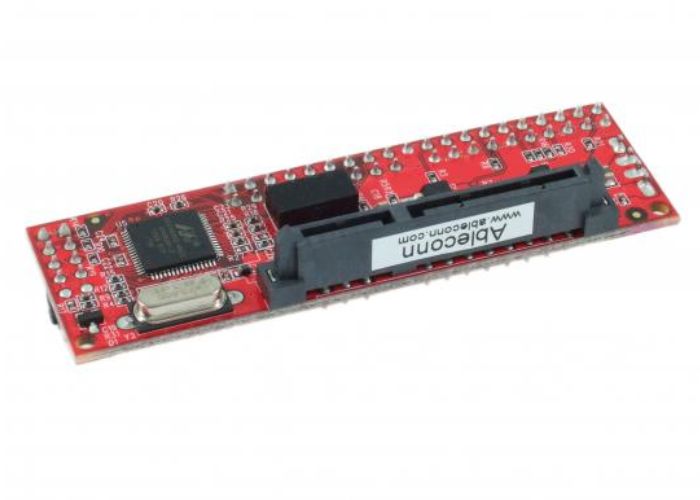

The Ableconn IDE40-SAT allows you to install a SATA drive to the motherboard with IDE/ATA connector. It’s the easiest and cost effective solution to replace existing IDE drives with newer cost-effective SATA drives to your systems that are only equipped with IDE interfaces.
Features
- Connector:
- 1 x IDE (40-pin, PATA) Male (to be connected with a standard 40-pin IDE cable)
- 1 x SATA Data & Power (7 + 15 pins) (direct attach to SATA drive)
- 1 x SP4 (4-pin; floppy style small drive power) Male
- Chipset: Marvell 88SA8052
- Data transfer rate:
- Up to 150 MBps
- Jumper Selection:
- 1 x jumper for selection of Master/Slave/Cable Select modes
- Software:
- OS independent; No driver installation required
- Support Windows, Macs, and Linux
- SATA II 3Gbps controller Mini vertical Adapter Board
- Supports any type of SATA III, SATA II and SATA I Device (Blu-ray Disc, SSD, DVD, DVD-RAM, CD-ROM, CD-RW, Hard Disk)
- Convert a SATA Drive like a standard IDE/ATAPI Drive
- 48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB
- Compliant with Serial ATA 2.6
- Bootable
- Jumper setting support IDE Master, Slave and Cable Select Modes
- Tag Command Queuing (Max 32 entries)
- ATA/ATAPI PIO mode data transfer
- ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
- ATA/ATAPI-7 Streaming feature set
- Fully RoHS compliant
- Made in Taiwan
Package Contents
- Ableconn IDE40-SAT IDE to SATA Hard Drive or Optical Drive Mini Adapter
- 1 x Y Power Cable (LP4 Molex to LP4 +SP4)
